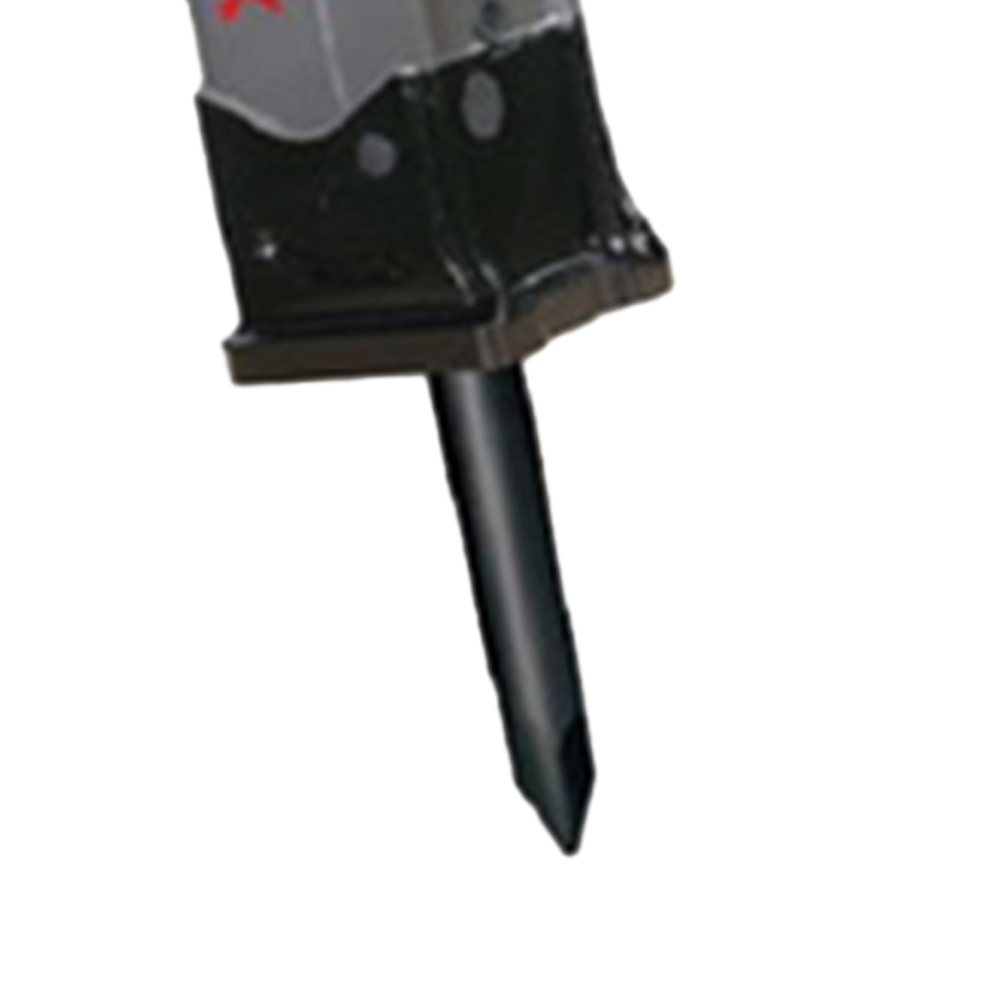

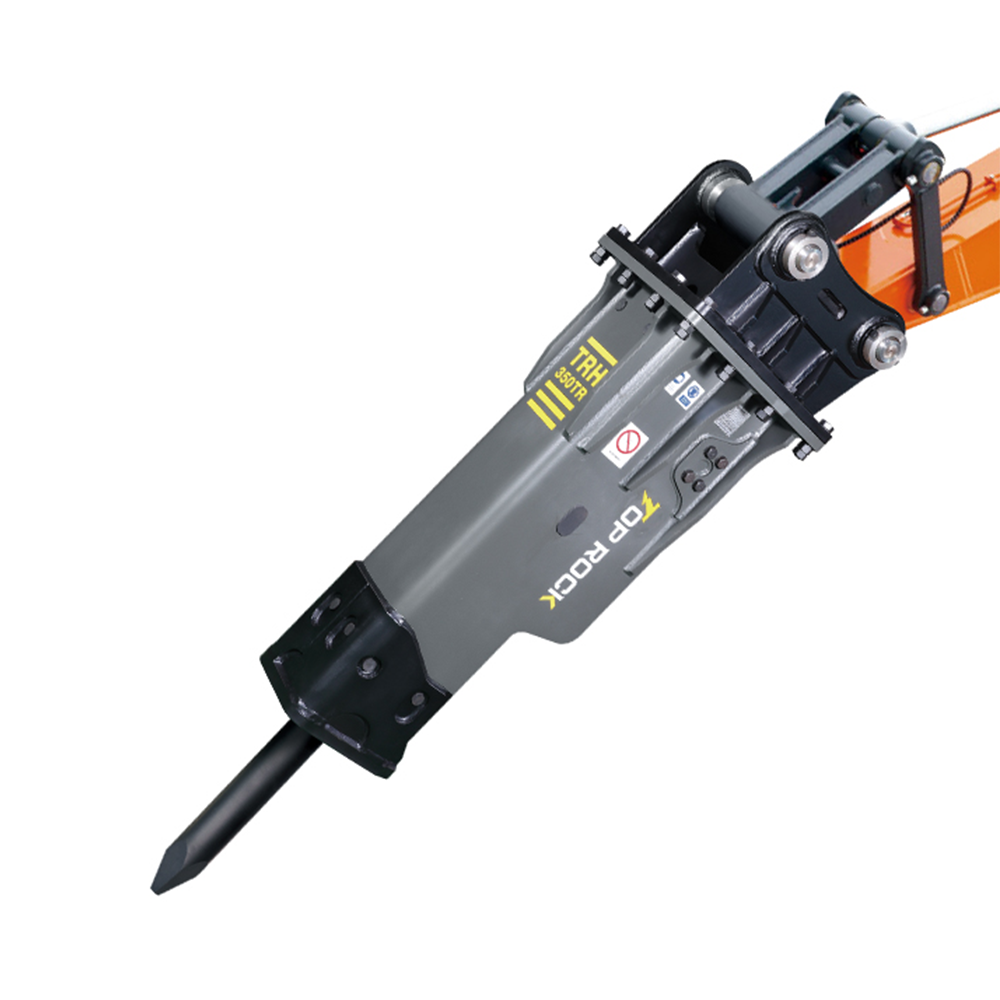

TOP ROCK HYDRAULIC BREAKER
-
Payment
T/T
-
MOQ
1 Unit
-
Supply Ability
5 Unit per Month
-
Supply Details
Customization
MAX 5 units /container, Negotiable
-
Country of sale
Americas, Europe, World Wide, Asia, Middle East
-
PRICE
-
FOB
USD 25,000.00 ~ 70,000.00
(1 Unit)
-
ITEM SPECIFICS
-
Brand
Model TRH10TR/20TR/30TR/50TR/60TR/90TR/120TR/190TR/220TRTOP ROCK
-
origin
Republic of Korea
-
Size(Capacity)
for 0.20ton ~75ton excavator
-
Function
For demolition conrete , rock
-
Color
Dark Gray and White
-
Weight
150~ 6,620kgs
-
Condition
Brand New
PRODUCT DESCRIPTION
TOP ROCK HYDRAULIC BREAKER
Specification
| Description | Unit | TRH10TR | TRH20TR | TRH30TR | TRH50TR | TRH60TR | TRH90TR | TRH120TR | |
| Operating Weight (including tool) |
With Mount Cap |
kg | 120 | 210 | 270 | 360 | 460 | 600 | 950 |
| lbs | 265 | 463 | 595 | 794 | 1,014 | 1,323 | 2,094 | ||
| Overall Height (including tool) |
With Mount Cap |
mm | 1,135 | 1,350 | 1,420 | 1,586 | 1,729 | 1,946 | 2,338 |
| inch | 44.7 | 53.1 | 55.9 | 62.4 | 68.1 | 76.6 | 92.0 | ||
| Without Mount Cap |
mm | 905 | 1,110 | 1,220 | 1,386 | 1,479 | 1,726 |
2,053
|
|
| inch | 35.6 | 43.7 | 48.0 | 54.6 | 58.2 | 68.0 | 80.8 | ||
| Operating Pressure | bar | 90~120 | 90~120 | 90~120 | 95~130 | 100~130 | 130~150 | 150~170 | |
| psi | 1,280~1,707 | 1,280~1,707 | 1,280~1,707 | 1,378~1,895 | 1,450~1,885 | 1,885~2,176 | 2,176~2,446 | ||
| Setting Pressure | bar | 150 | 150 | 150 | 170 | 170 | 195 | 210 | |
| psi | 2,175.6 |
2,175.6
|
2,175.6 | 2,465.7 | 2,465.7 | 2,828.2 | 3,045.8 | ||
| Required oil flow | ℓ/min | 15~30 | 20~40 | 25~50 | 40~70 | 50~90 | 60~100 | 80~110 | |
| gpm | 4~8 | 5.3~10.6 | 6.6~13.2 | 10.6~18.5 | 13.2~23.8 | 15.9~26.4 | 21.1~29.1 | ||
| Backhead Pressure | bar | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| psi | 232 | 232 | 232 | 232 | 232 | 232 | 232 | ||
| Accumulator Pressure | bar | - | - | - | - | - | - | - | |
| psi | - | - | - | - | - | - | - | ||
| Impact Rate | bpm | 800~1,400 | 600~1,200 | 550~1,000 | 450~900 | 450~900 | 400~800 | 450~700 | |
| Tool Shank Diameter | mm | 40 | 45 | 53 | 68 | 75 | 85 | 100 | |
| inch | 1.58 | 1.77 | 2.08 | 2.67 | 2.95 | 3.34 | 3.93 | ||
| Impact Energy | Joule | 399 | 416 | 492 | 849 | 1,210 | 1,764 | 2,443 | |
| ft.lb | 294 | 307 | 363 | 626 | 892 | 1,301 | 1,802 | ||
| Suitable Machine | ton | 0.8~2.5 | 1.2~3.0 | 2.0~3.5 | 4~6 | 5~9 | 7~11 | 11~16 | |
| lbs | 1,764~5,511 | 2,645~6,614 | 4,409~7,716 | 8,818~13,228 | 11,023~19,841 | 15,432~24,251 | 24,251~35,274 | ||
| Description | Unit | TRH190TR | TRH220TR | TRH350TR | TRH450TR | TRH550TR | TRH650TR | TRH750TR | |
| Operating Weight (including tool) |
With Mount Cap |
kg | 1,370 | 1,790 | 2,240 | 3,020 | 4,250 | 5,330 | 6,620 |
| lbs | 3,020 | 3,946 | 4,938 | 6,657 | 9,369 | 11,750 | 14,593 | ||
| Overall Height (including tool) |
With Mount Cap |
mm | 2,480 | 2,773 | 3,046 | 3,281 | 3,758 | 4,130 | 4,443 |
| inch | 97.6 | 109.2 | 119.9 | 129.2 | 148.0 | 162.6 | 174.9 | ||
| Without Mount Cap |
mm | 2,210 | 2,413 | 2,686 | 2,839 | 3,316 | 3,520 | 3,753 | |
| inch | 83.5 | 95.0 | 105.7 | 111.8 | 130.6 | 138.6 | 147.8 | ||
| Operating Pressure | bar | 150 ~ 170 | 160 ~ 180 | 160 ~ 180 | 170 ~ 190 | 170 ~ 190 | 200 ~ 230 | 210 ~ 240 | |
| psi | 2,176~2,466 | 2,320~2,611 | 2,320~2,611 | 2,466~2,756 | 2,466~2,756 | 2,901~3,336 | 2,901~3,336 | ||
| Setting Pressure | bar | 210 | 210 | 230 | 230 | 240 | 260 | 270 | |
| psi | 3,046 | 3,046 | 3,336 | 3,336 | 3,481 | 3,771 | 3,916 | ||
| Required oil flow | ℓ/min | 90 ~ 120 | 130 ~ 150 | 160 ~ 190 | 190 ~ 210 | 190 ~ 210 | 200 ~ 230 | 210 ~250 | |
| gpm | 23.78~31.70 | 34.34~39.63 | 42.26~50.19 | 50.19~55.47 | 50.19~55.47 | 52.83~60.76 | 55.47~66.04 | ||
| Backhead Pressure | bar | 6 | 6 | 6 | 8 | 11 | 17 | 17 | |
| psi | 87 | 87 | 87 | 116 | 160 | 247 | 247 | ||
| Accumulator Pressure | bar | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| psi | 870 | 870 | 870 | 870 | 870 | 870 | 870 | ||
| Impact Rate | bpm | 400 ~ 900 | 400 ~ 800 | 350 ~ 750 | 300 ~ 500 | 240 ~ 310 | 150 ~ 280 | 150~250 | |
| Tool Shank Diameter | mm | 120 | 135 | 150 | 160 | 180 | 190 | 210 | |
| inch | 4.72 | 5.31 | 5.90 | 6.29 | 7.09 | 7.48 | 8.27 | ||
| Impact Energy | Joule | 4,234 | 5,717 | 9,150 | 9,980 | 13,125 | 14,800 | 17,500 | |
| ft.lb | 3,123 | 4,217 | 6,749 | 7,361 | 9,681 | 10,916 | 12,907 | ||
| Suitable Machine | ton | 13 ~ 18 | 18 ~ 26 | 28 ~ 35 | 33 ~45 | 45 ~ 55 | 48 ~ 65 | 55 ~ 75 | |
| lbs | 28,660~39,683 | 39,683~57,320 | 61,729~77,162 | 72,753~99,208 | 99,208~121,254 | 105,822~143,300 | 121,254~165,346 | ||
Features
HIGH POWER MACHINE TECHNOLOGY
FOR BREAKING AND DEMOLITION ROCK
FOR BREAKING AND DEMOLITION ROCK
Small & Compact Range (TRH10~TRH120)
· Advance design technology for output energy and efficiency.
· Manimal moving parts only 2 for less maintenance,better performance and less service.
· Fully enclosed housing for quitter operation and less dirt contamination.
· Added steel reinforcement at lower end housing to protect housing and power cell.
· Narrow profile for better visibility and close-in trench works.
· Lighter weight allowing choice of small carrier.
· Supported powercelll by rubber cushions and urethane wear plated to absorb shock and vibration and reducer wear.
· Combine high operation efficiency and nitrogen gas energy to achive powerful breaking force,even in the toughest conditions.
· They are suitable for demolition and recycling works, canalistation work, surface construction,excavation and civil engineering works and road works. For work in quarries,renovation and cutting, as well as garden and landscaping works.
· Manimal moving parts only 2 for less maintenance,better performance and less service.
· Fully enclosed housing for quitter operation and less dirt contamination.
· Added steel reinforcement at lower end housing to protect housing and power cell.
· Narrow profile for better visibility and close-in trench works.
· Lighter weight allowing choice of small carrier.
· Supported powercelll by rubber cushions and urethane wear plated to absorb shock and vibration and reducer wear.
· Combine high operation efficiency and nitrogen gas energy to achive powerful breaking force,even in the toughest conditions.
· They are suitable for demolition and recycling works, canalistation work, surface construction,excavation and civil engineering works and road works. For work in quarries,renovation and cutting, as well as garden and landscaping works.
HIGH POWER MACHINE TECHNOLOGY
FOR BREAKING AND DEMOLITION ROCK
FOR BREAKING AND DEMOLITION ROCK
Medium & Large Range (TRH190~TRH750)
· Tis range of TRH hammers is designed for wheel loade ,medium-large class crawler excavator upe to 70 tons and suitable heavy demolition works.
· Combine high hydraulic operation efficiency and nitrogen gas energy to achive powerful breaking force,even in the toughest conditions.
· They are suitable for demolition and recycling works, surface construction,excavation and civil engineering works,tunnel work and road works.
· Further potential applications include heavy-duty industrial demolition work, primary and secondary quarry work,foundation works, Rod construction, highly reinforced concrete, mining,trenching, bench levelling general construction works.
· Combine high hydraulic operation efficiency and nitrogen gas energy to achive powerful breaking force,even in the toughest conditions.
· They are suitable for demolition and recycling works, surface construction,excavation and civil engineering works,tunnel work and road works.
· Further potential applications include heavy-duty industrial demolition work, primary and secondary quarry work,foundation works, Rod construction, highly reinforced concrete, mining,trenching, bench levelling general construction works.
Advantage
· Complete range of Hydraulic breaker ( 0.2~75ton class excavator)
· Ensure state of the art technology and optimum products service by long experience.
· Provide the best performance and protect hydraulic system
· Superior Power & Efficiencies:
- Extended Piston stroke power & positive Alignment
- Maximized energy transfer to chisel efficiently
· Added Hardox reinforcement at lower end of housing to protect housing and power cell.
· Auto grease system for allow proper greasing procedures and long durability of hammer.
· Side plate locking system keeps bolts from loosening
· Silencing sound absorbing elements inside housing lower noise output, for sound sensitive applications.
· Ensure state of the art technology and optimum products service by long experience.
· Provide the best performance and protect hydraulic system
· Superior Power & Efficiencies:
- Extended Piston stroke power & positive Alignment
- Maximized energy transfer to chisel efficiently
· Added Hardox reinforcement at lower end of housing to protect housing and power cell.
· Auto grease system for allow proper greasing procedures and long durability of hammer.
· Side plate locking system keeps bolts from loosening
· Silencing sound absorbing elements inside housing lower noise output, for sound sensitive applications.
Company Overview
Welcome to SHINIL SNC
THE BEST PARTNER IS YOUR SUCCESSFUL FUTURE!!
SHINIL SNC (TOP ROCK) serve our Clients with the most efforts and long experience.
We respond flexibly to the customer’s various needs and demands and provide not only efforts to optimize our customer’s value but also high quality to meet their various demands and needs.
We, SHINIL SNC, are proud to be a new innovator & new leader in designing and manufacturing the Hydraulic Breakers, Pile Driver (Vibro-Hammer), Vibro-Ripper and other attachments for excavators in Korea since 2003.
We always provide the highest quality & developed products by the most experienced engineers industry combining vast experience and know-how in construction equipment, new age technology and unprecedented drive towards to our customer’s needs, we have built a solid customer base that is continuously growing.
So, Top Rock products has been proven with the best quality & excellent working performance at tough construction job site in worldwide markets.
The management of SHINIL SNC is fully committed to maintain the stable and highest quality of products and services which are in compliance with functional and customer’s requirements based on high technology and competent personal design, development, production, installation and servicing.
Any customer who purchase our line of products will definitely realize and experience TOP ROCK fast service spirit and mentality which make customers various needs and satisfaction.
Our efforts of improving quality in all respects will not stop at all for our customer’s profits, who has become the member of TOP ROCK family.
With strong vision for the future,
TOP ROCK is name you can trust for years to come !
Sincerely yours,
THE BEST PARTNER IS YOUR SUCCESSFUL FUTURE!!
SHINIL SNC (TOP ROCK) serve our Clients with the most efforts and long experience.
We respond flexibly to the customer’s various needs and demands and provide not only efforts to optimize our customer’s value but also high quality to meet their various demands and needs.
We, SHINIL SNC, are proud to be a new innovator & new leader in designing and manufacturing the Hydraulic Breakers, Pile Driver (Vibro-Hammer), Vibro-Ripper and other attachments for excavators in Korea since 2003.
We always provide the highest quality & developed products by the most experienced engineers industry combining vast experience and know-how in construction equipment, new age technology and unprecedented drive towards to our customer’s needs, we have built a solid customer base that is continuously growing.
So, Top Rock products has been proven with the best quality & excellent working performance at tough construction job site in worldwide markets.
The management of SHINIL SNC is fully committed to maintain the stable and highest quality of products and services which are in compliance with functional and customer’s requirements based on high technology and competent personal design, development, production, installation and servicing.
Any customer who purchase our line of products will definitely realize and experience TOP ROCK fast service spirit and mentality which make customers various needs and satisfaction.
Our efforts of improving quality in all respects will not stop at all for our customer’s profits, who has become the member of TOP ROCK family.
With strong vision for the future,
TOP ROCK is name you can trust for years to come !
Sincerely yours,
Other Products
R&D CERTIFICATE
PAYMENTS DETAILS
This supplier supports payments for offline orders
- Telegraphic Transfer : T/T
- Name : DONG EUN SHIN
SHIPPING
Shipping from :
Republic of Korea
- 70 Gasan digital 2-ro, Geumcheon-gu, Seoul (08589)
SHINIL SNC
The person in charge
DONG EUN SHINAddress
70 Gasan digital 2-ro, Geumcheon-gu, Seoul (08589)
Introduction
Welcome to SHINIL SNC
THE BEST PARTNER IS YOUR SUCCESSFUL FUTURE!!
SHINIL SNC (TOP ROCK) serve our Clients with the most efforts and long experience.
We respond flexibly to the customer’s various needs and demands and provide not only efforts to optimize our customer’s value but also high quality to meet their various demands and needs.
We, SHINIL SNC, are proud to be a new innovator & new leader in designing and manufacturing the Hydraulic Breakers, Pile Driver (Vibro-Hammer), Vibro-Ripper and other attachments for excavators in Korea since 2003.
We always provide the highest quality & developed products by the most experienced engineers industry combining vast experience and know-how in construction equipment, new age technology and unprecedented drive towards to our customer’s needs, we have built a solid customer base that is continuously growing.
So, Top Rock products has been proven with the best quality & excellent working performance at tough construction job site in worldwide markets.
The management of SHINIL SNC is fully committed to maintain the stable and highest quality of products and services which are in compliance with functional and customer’s requirements based on high technology and competent personal design, development, production, installation and servicing.
Any customer who purchase our line of products will definitely realize and experience TOP ROCK fast service spirit and mentality which make customers various needs and satisfaction.
Our efforts of improving quality in all respects will not stop at all for our customer’s profits, who has become the member of TOP ROCK family.
With strong vision for the future,
TOP ROCK is name you can trust for years to come !
Sincerely yours,
-
- Business Type :
- Manufacturer
-
- Main Product :
- HYDRAULIC BREAKER, Vibro Hammer
-
- Established :
- 2003-06-01
-
- Total Annual Revenue :
- 1~2 billion (KRW)
-
- Total Employees :
- Less than 5
R&D CERTIFICATE

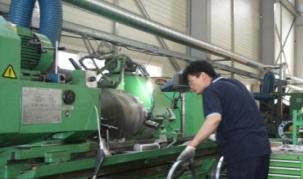

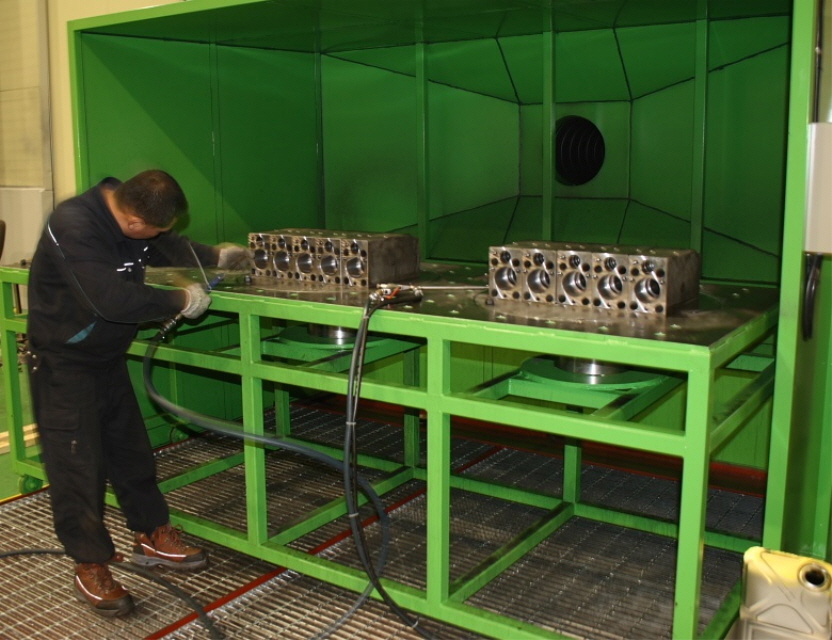

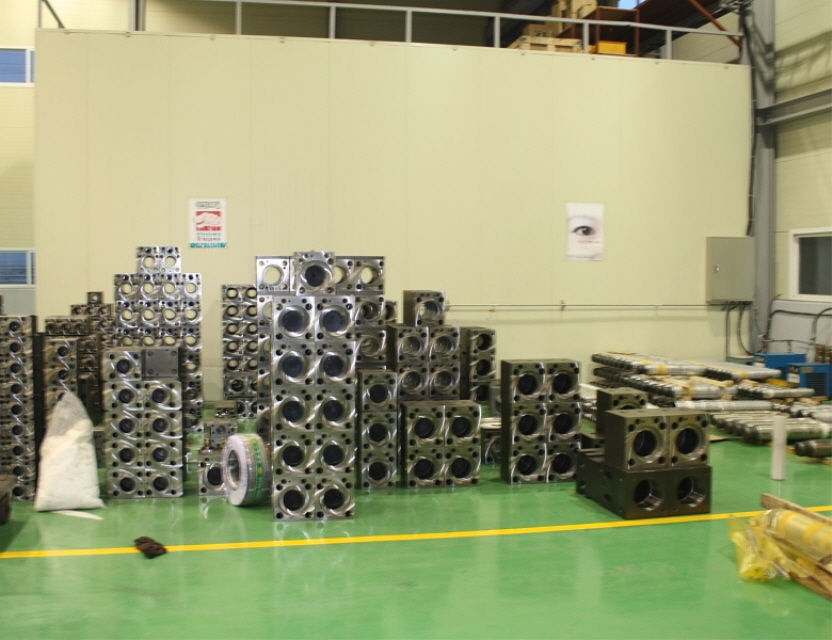

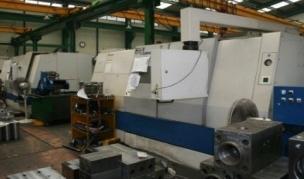

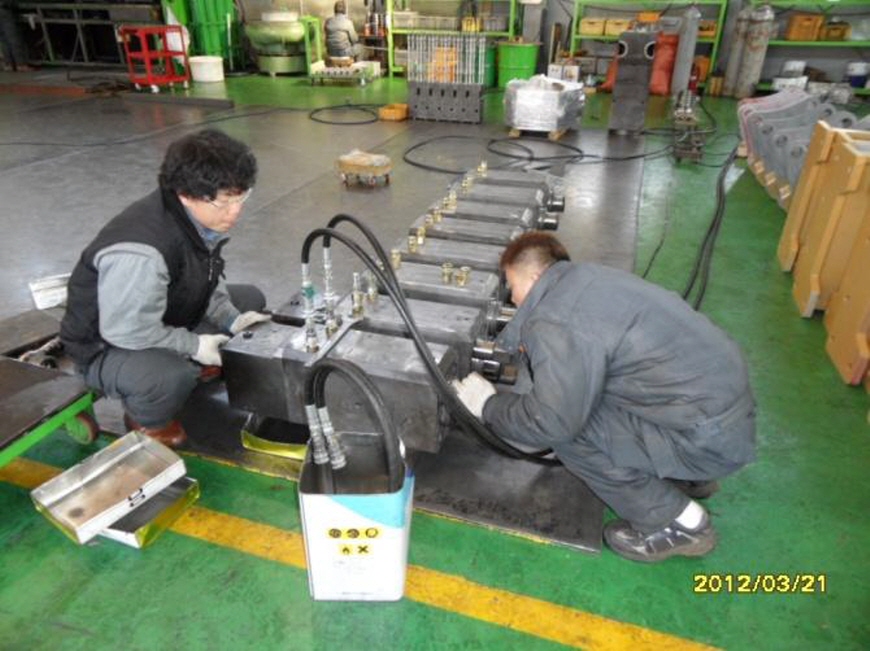

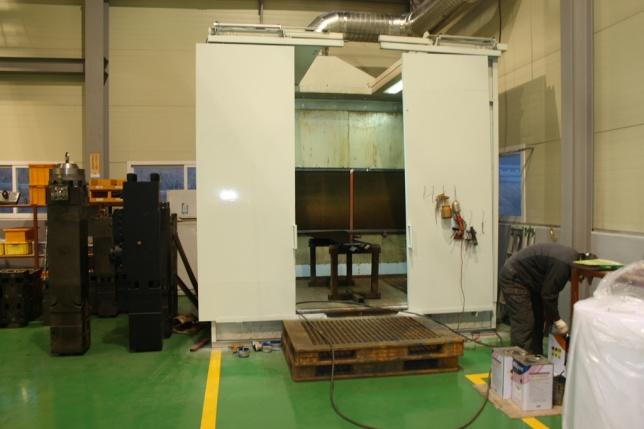

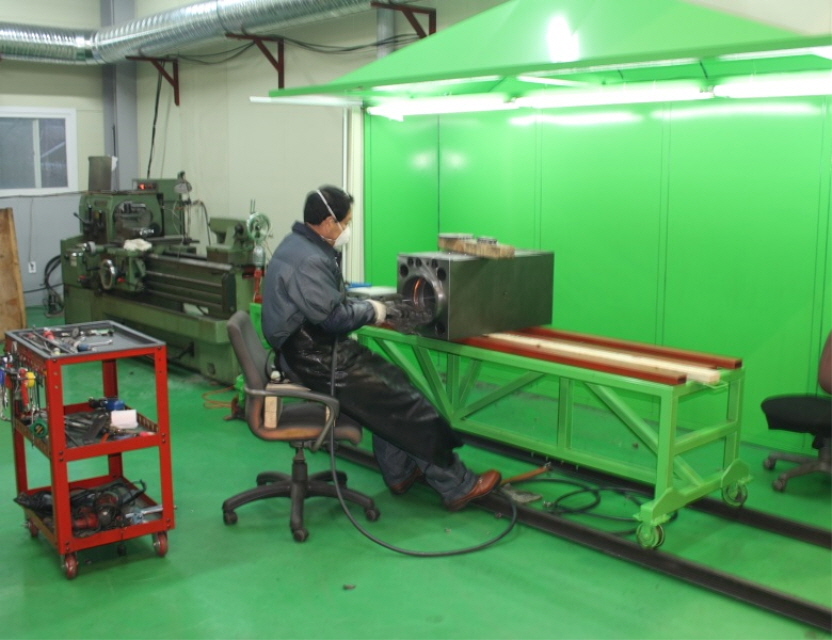

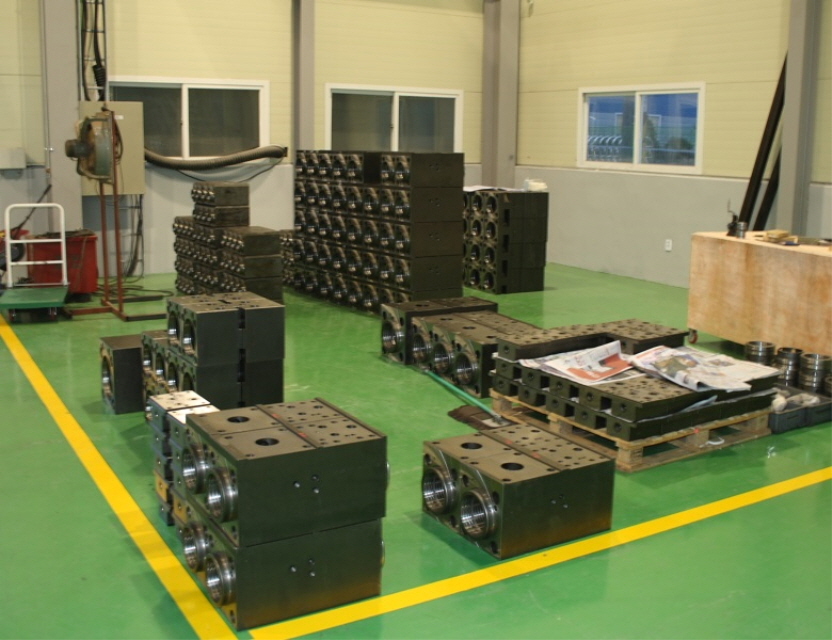

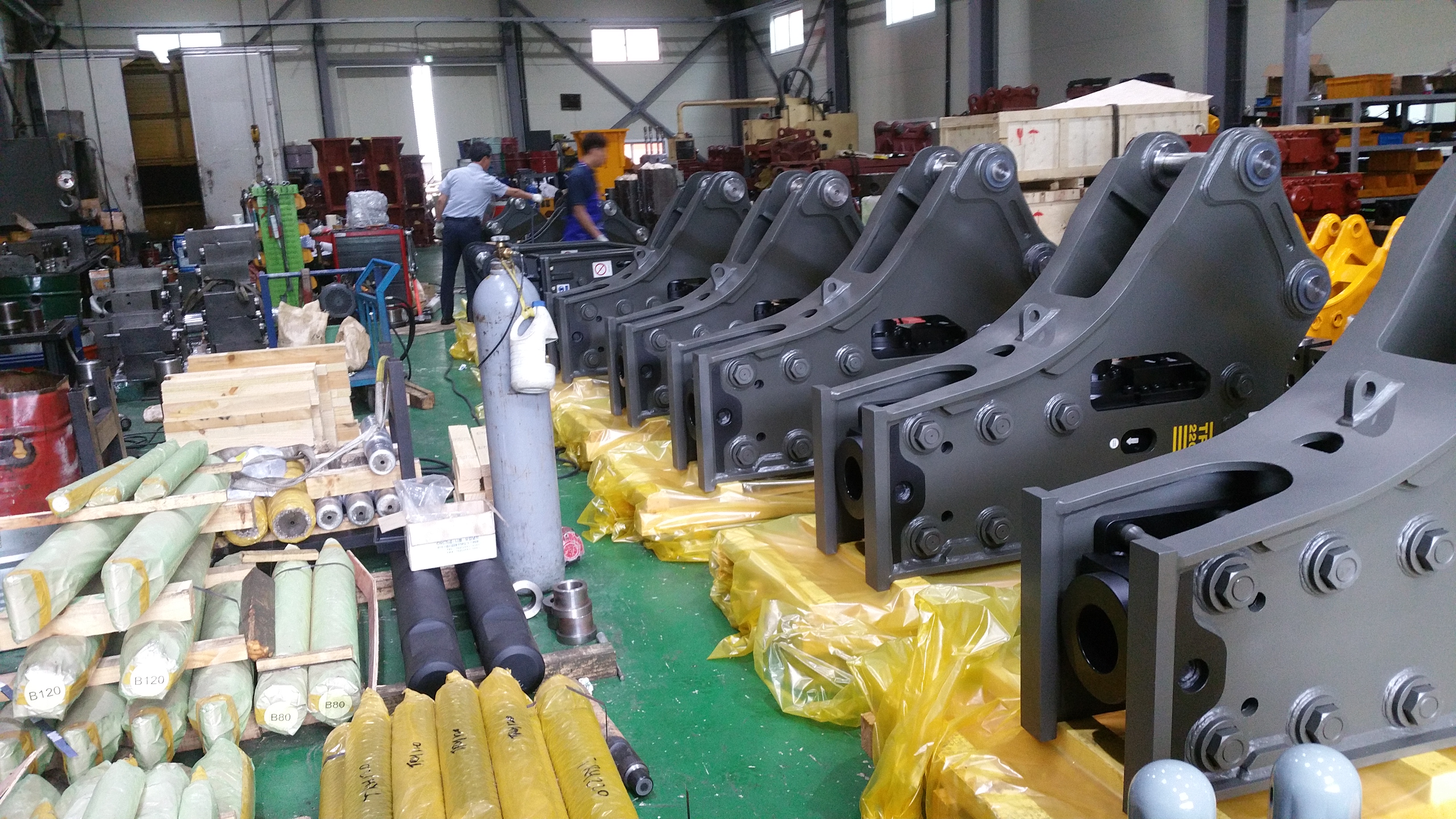

COMPANY ENVIRONMENT
