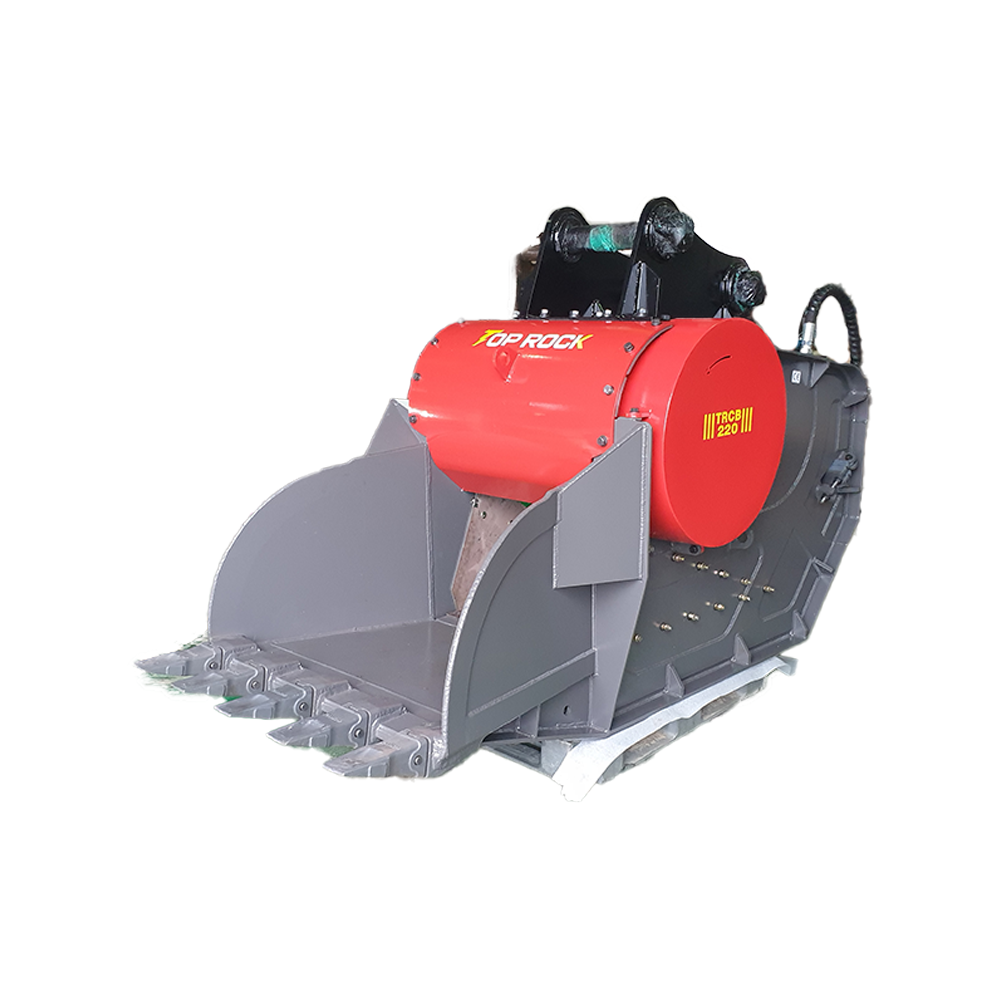

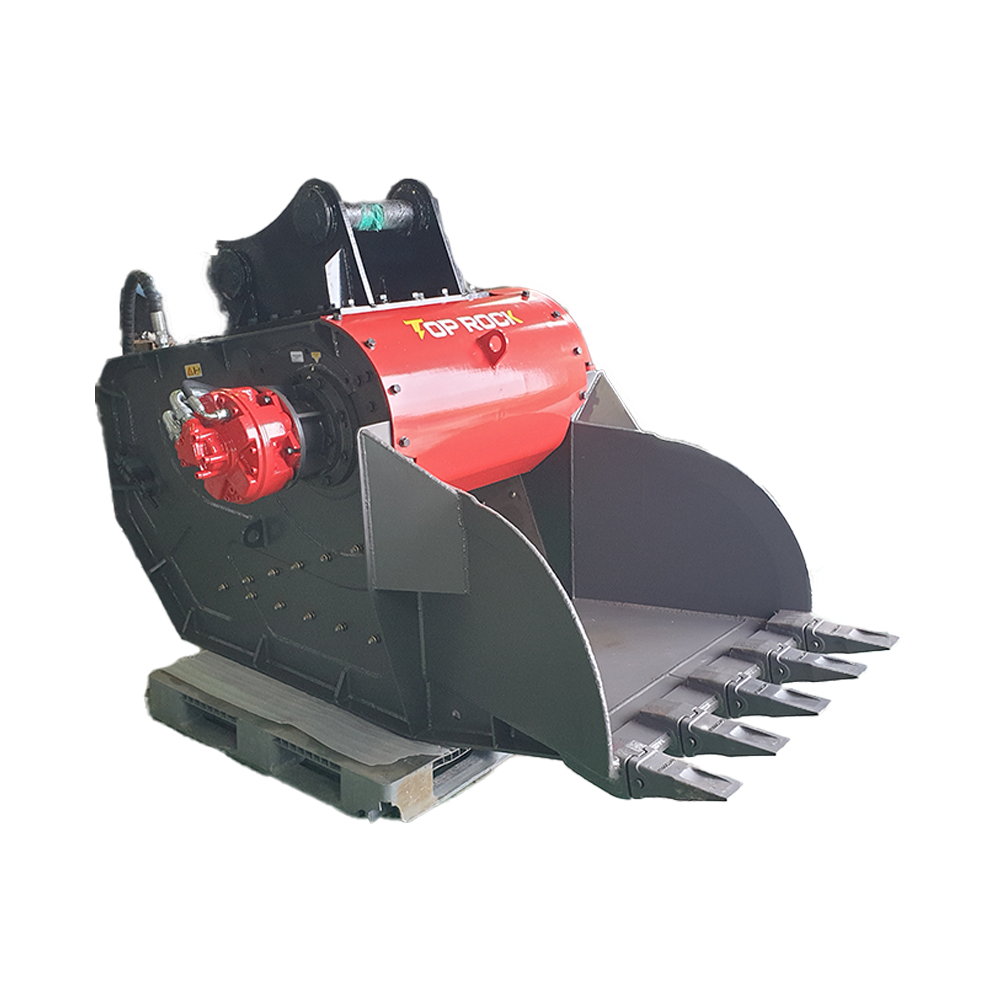

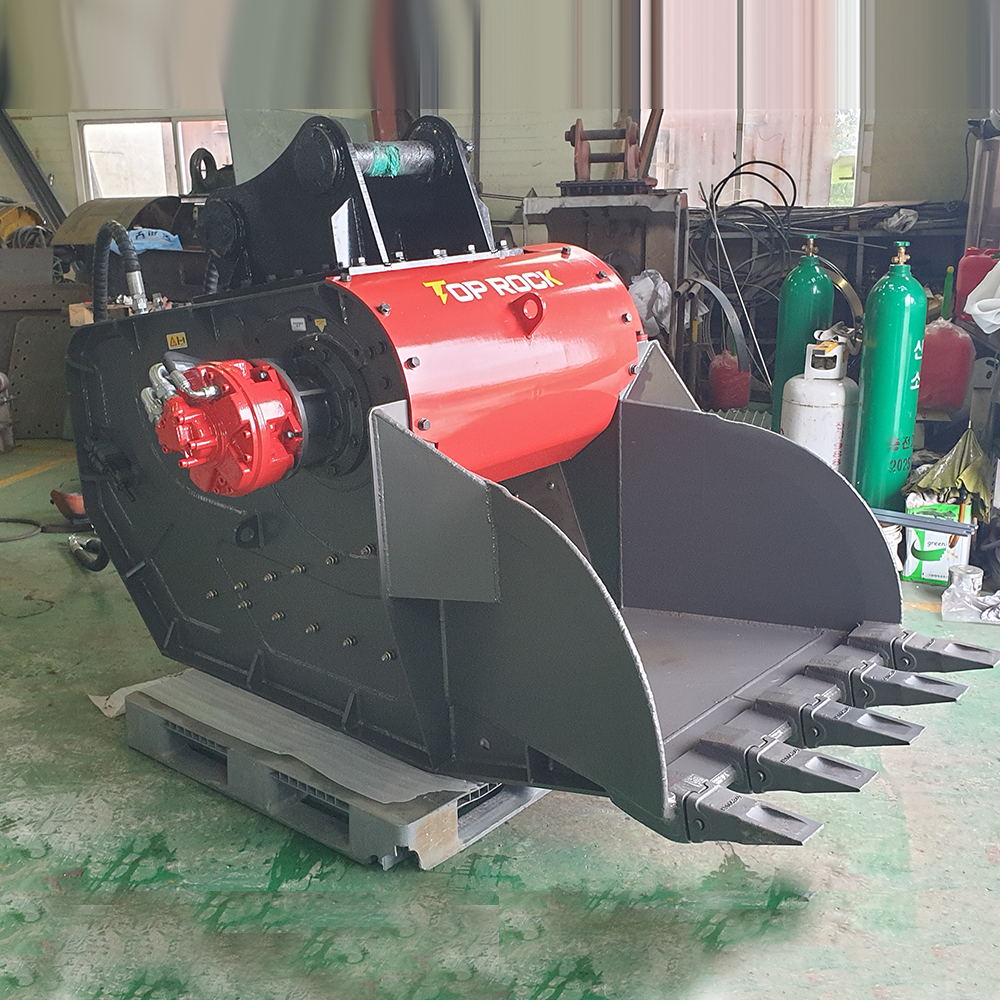

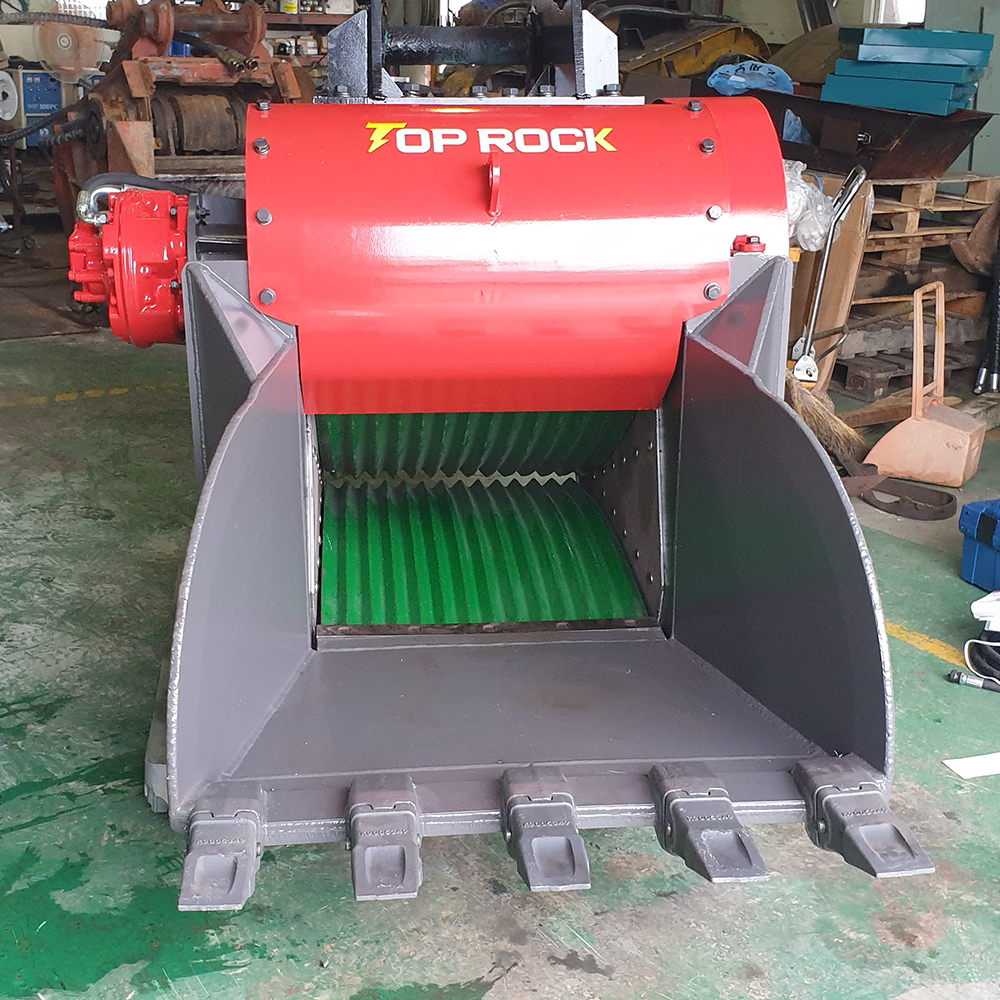

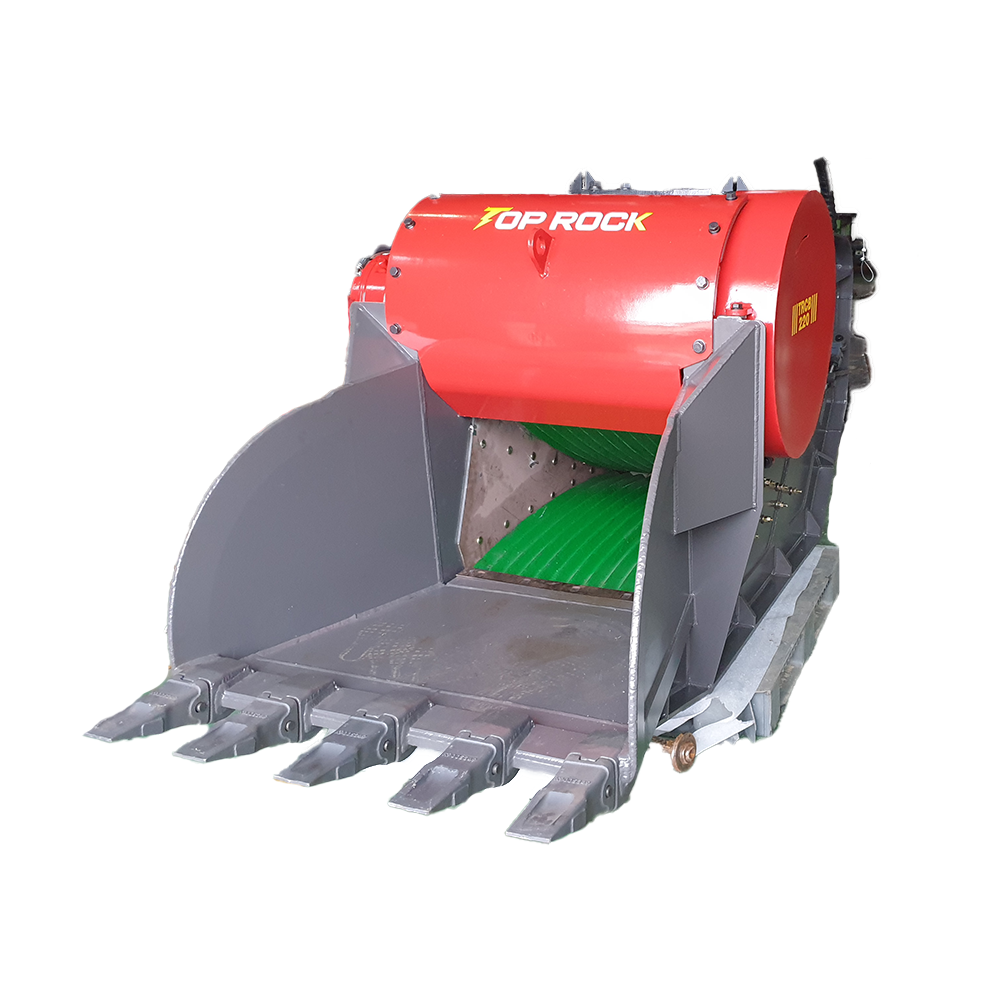

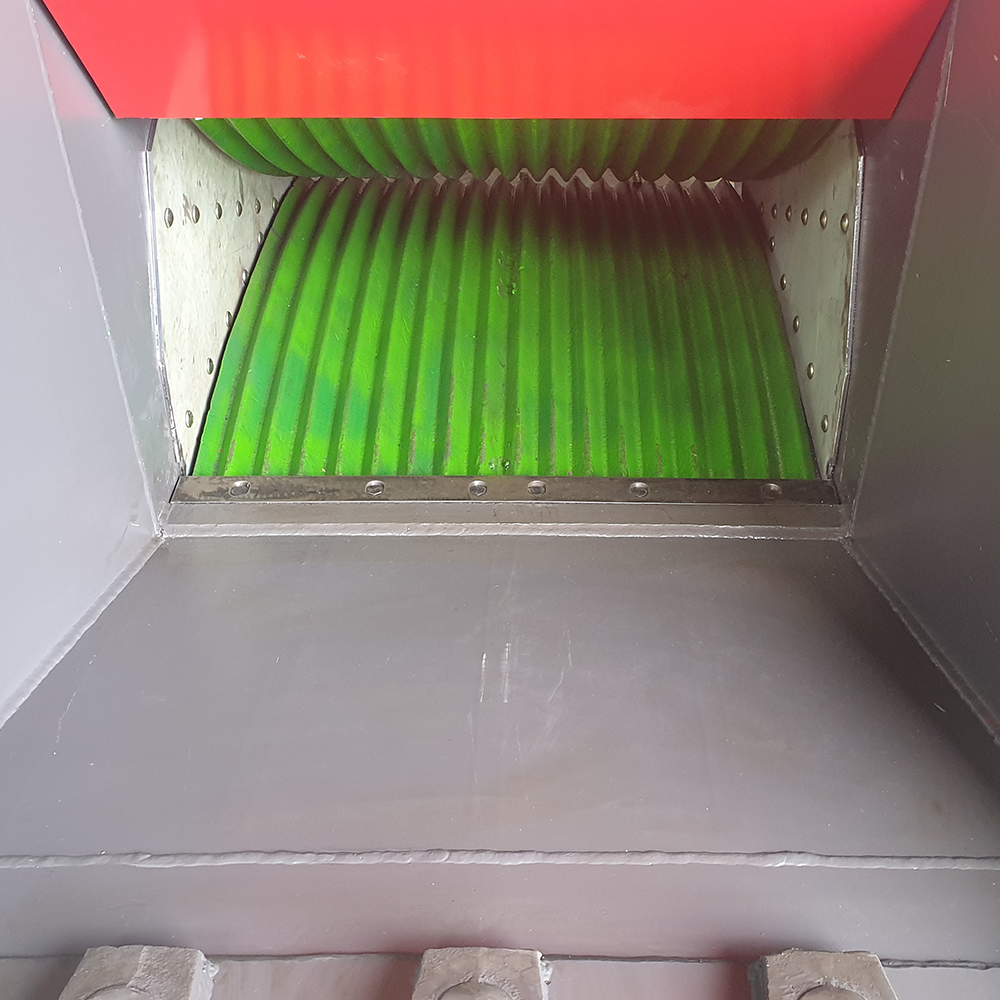

TOP ROCK Bucket Crusher
-
Payment
T/T
-
MOQ
1 Unit
-
Supply Ability
5 Unit per Month
-
Supply Details
Customization
MAX 5 units /container, Negotiable
-
Country of sale
Americas, Europe, World Wide, Asia, Middle East
-
PRICE
-
FOB
USD 25,000.00 ~ 50,000.00
(1 Unit)
-
ITEM SPECIFICS
-
Brand
Model TRCB220/TRCB350/TRCB450TOP ROCK
-
origin
Republic of Korea
-
Size(Capacity)
for 20ton ~45ton excavator
-
Function
For crushing construction waste
-
Color
Dark Gray and red
-
Weight
2600~ 5000kgs
-
Condition
Brand New
PRODUCT DESCRIPTION
TOP ROCK Bucket Crusher
Specification
SPECIFICATION & DIMENSION
| MODEL | UNIT | TRCB220 | TRCB350 | TRCB450 | |
| Weight of Carrier | ton | 18~26 | 28~35 | 30~45 | |
| Type of rotation | Fixed | Fixed | Fixed | ||
| Operating weight | kgs | 2600 | 3650 | 4950 | |
| lbs | 5732 | 8047 | 10912 | ||
| Loading capacity | m3 | 0.60 | 0.80 | 1.00 | |
| Setting Pressure | bar | 270 | 300~320 | 300~320 | |
| psi | 3553 | 3558~3842 | 3558~3842 | ||
| Operating Pressure | bar | 270 | 300~320 | 300~320 | |
| psi | 3553 | 3558~3842 | 3558~3842 | ||
| Oil Flow | lpm | 150 | 180 | 180 | |
| gpm | 39.6 | 47.52 | 47.52 | ||
| size of Bucket Input | mm | 700 x 500 | 1050 x 600 | 1200 x 600 | |
| inch | 27.56 x 19.89 | 41.34 x 21.65 | 47.24 x 21.65 | ||
| Material size of Input | mm | 300~350 | 400~500 | 400~500 | |
| inch | 11.81~13.78 | 15.75~19.69 | 15.75~19.69 | ||
| ouput Capacity | mm | 20~120 | 20~150 | 20~150 | |
| inch | 0.79~4.72 | 0.79~5.91 | 0.79~5.91 | ||
| DEMENSION | Height | mm | 1,170 | 1,280 | 1,500 |
| inch | 48.06 | 50.3 | 59.05 | ||
| Width(W) | mm | 1,030 | 1,370 | 1,370 | |
| inch | 40.56 | 53.94 | 53.94 | ||
| Length | mm | 2,775 | 2,419 | 2,500 | |
| inch | 90 | 95 | 98 | ||
Production Rate
TRCB220 (20ton)
| MATERIAL OF INPUT | Unit | CRUSHING OUTPUT ADJUSTMENT | |||||||||
| mm | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | |
| Raw stones (less than 250mm) |
m3/h | 8 | 12 | 16 | 22 | 27 | 32 | 37 | 42 | 48 | 53 |
| Concret (less than 300mm) |
m3/h | 12 | 16 | 21 | 27 | 33 | 39 | 46 | 52 | 58 | 65 |
| Mineral/coal (less than 400mm) |
m3/h | 20 | 23.5 | 28 | 34 | 39 | 45 | 52 | 58 | 65 | 72 |
TRCB350 (30ton)
| MATERIAL OF INPUT | Unit | CRUSHING OUTPUT ADJUSTMENT | |||||||||
| mm | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | |
| Raw stones (less than 300mm) |
m3/h | 10 | 17.5 | 24 | 30 | 36 | 40 | 45 | 50 | 56 | 63 |
| Concret (less than 450mm) |
m3/h | 20 | 22.5 | 28.5 | 35 | 45 | 52 | 60 | 67 | 74 | 83 |
| Mineral/coal (less than 600mm) |
m3/h | 35 | 38.5 | 42 | 46 | 51 | 57 | 63 | 69 | 75 | 82 |
Features
Top Rock Crusher bucket attached to excavators through a simple connection of hydraulic lines is a equipment that can crush immediately gravels, recycled concrete on-site constructions and road reconstruction.
It's a eco-friendly equipment which has the advantage of saving fuel, cost of using and transportation of large stationary crusher equipment.
It's a eco-friendly equipment which has the advantage of saving fuel, cost of using and transportation of large stationary crusher equipment.
· The Best in the treatment of increasing construction wastes!
· The Leader in mobility, who locates and visits the site of construction waste gerneration and shreads them!
· The abosolute best in construction waste disposal!
· The best in reducing construction waste disposal costs!
· The best attachment to help refuse construction waste into reclic aggregates!
· The Leader in mobility, who locates and visits the site of construction waste gerneration and shreads them!
· The abosolute best in construction waste disposal!
· The best in reducing construction waste disposal costs!
· The best attachment to help refuse construction waste into reclic aggregates!
Crushing process of Bucket Crusher
