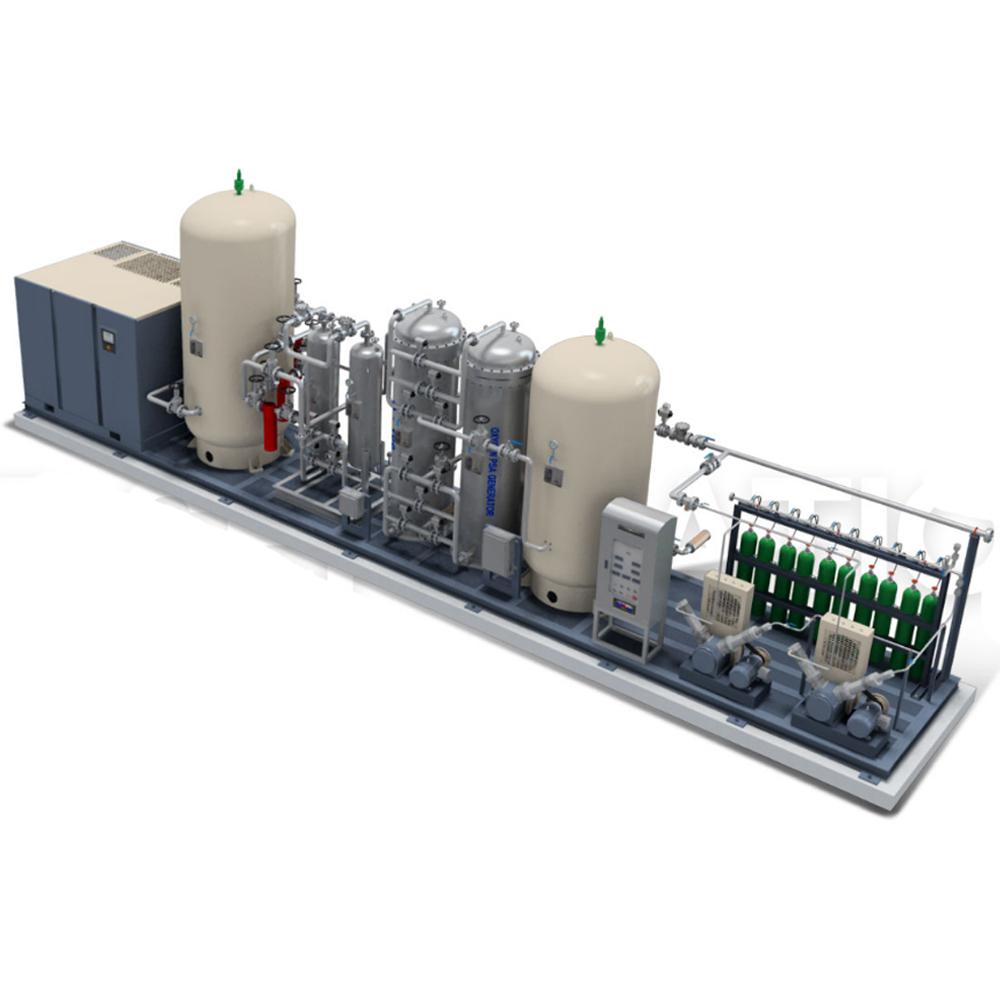

O2 PSA generator utilizes ZMS(Zeolite Molecular Sieve) to separate the oxygen gas from air. The Principle is to make use of different adsorption force of gases in air at pressure equalizing. The whole process of O2 PSA generator consists of Pressurization, Production, Purge, Equilibrium of pressure and Desorption.

Ambient air contains 21% oxygen, 78% nitrogen, 0.9% Argon and 0.1% other gases. ASPE Inc. Pressure Swing Adsorption (PSA) oxygen generators utilize Zeolite Molecular Sieve (ZMS) to separate oxygen from air, which adsorbs nitrogen from compressed air using air compressor and desorbs it at atmospheric pressure. ASPE Inc. PSA oxygen generators contain two adsorbent vessels. When the first vessel produces oxygen gas, the second vessel proceeds with desorption process for production. This process consists of Pressurization, Production, Purge, Equilibrium of pressure and Desorption and continually repeats for oxygen production.

• Technical Spec. (Standards)
• O2 Flow (Max.) : 2,000 Nm3/h
• O2 Purity (Max.) : 90 to 99%
• O2 Cylinder Filling : 150 bar Grecommended

Hospital, Fish Farm, Complete combustion, Ozone, Fermentation, Sewage treatment plant, cutting/brazing.

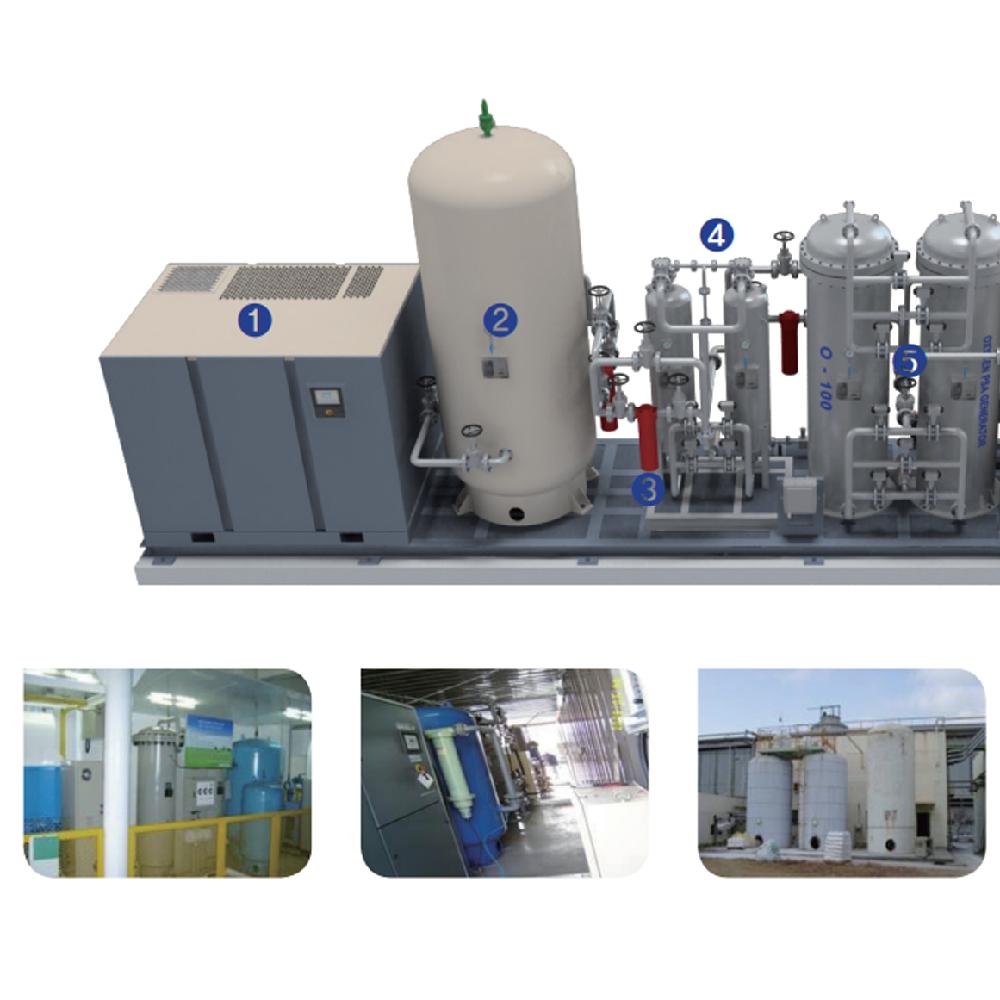

1. Air Compressor
Air compressor is the equipment used to produce compressed air. Compressed air is used for separating oxygen from air. In the process fo compression, moisture and heat happen. to remove them, built-in or independent air dryers and after-coolers are necessary

2. Air receiver Tank
Air receiver tank is the equipment used to keep supplying compressed air of certain pressure to the oxygen generator stably. it is also for the purpose of handling the load of compressor properly.

3. Filter
Filter is used for removing dust, particle and oil in the compressed air.

4. Desiccant air dryer
This is used for removing moisture by using adsorbent. It consists two adsorbers and it has the repeated cycles of adsorption and regeneration.

5. PSA Generator
In order to separate the oxygen from the compressed air, ZMS(Zeolite Molecular Sieve) is used as adsorbent. O2 PSA system consist of pressurization, production, purge, equilibrium of pressure and regeneration.

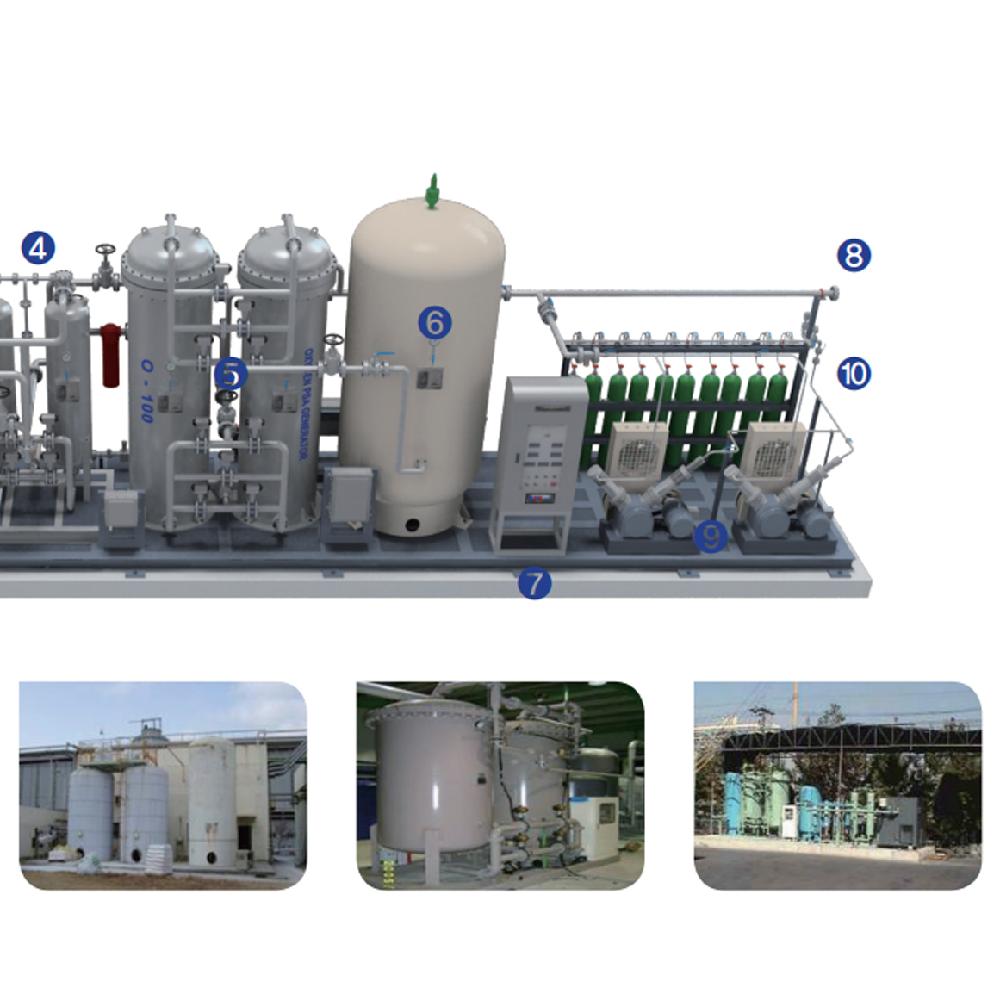

6. Oxygen storage Tank
It is a buffer (storage) tank used to supply the processed oxygen with certain pressure, purity and flow.

7. LCP
LCP has control of the whole system into operating automatically or manually. It also indicates purity, pressure and flow of the produced oxygen.

8. Oxygen supply
The purity of the produced oxygen is 90-95%. Flow and pressure depend on customer's needs.

9. High pressure Compressor
It is a high pressure compressor to fill oxygen cylinders at 125-150BarG.

10. Manifold and Oxygen cylinder
Pipelines are designed to fill oxygen cylinders at the same time and cylinders are connected at the end of manifold.

Model	O2 Flow (Nm3/h)	Size(W*D*H)	Weight (Kg)
O-2	2	685*570*1566	390
O-3	3	800*640*1623	510
O-5	5	850*680*1966	710
O-8	8	1080*812*1863	940
O-10	10	1080*812*2192	1120
O-12	12	1230*920*2207	1260
O-15	15	1330*980*2270	1470
O-18	18	1621*1237*2664	1630
O-21	21	1621*1237*2820	1690
O-23	23	1821*1310*2823	2120
O-25	25	1821*1310*2909	2140
O-30	30	1822*1361*2980	2620
O-35	35	2126*1513*2891	3020
O-40	40	2126*1513*3100	3400
O-45	45	2126*1513*3410	3670
O-50	50	2329*1615*3426	4420
O-60	60	2329*1816*3400	4700
O-70	70	2732*1816*3466	5440
O-100	100	3138*2019*3738	7130
O-120	120	3488*2194*4000	8100
O-140	140	3488*2194*4209	9330

- Inlet Air Pressue: 95PSIG, Output Productive Pressure: 65 PSIG
- Purity: 93%(±2)
- Voltage: 220V / 60 (50)Hz / 1 Phase

Customization. If you want to know specific information, please contact me. We are able to meet any requirements.
